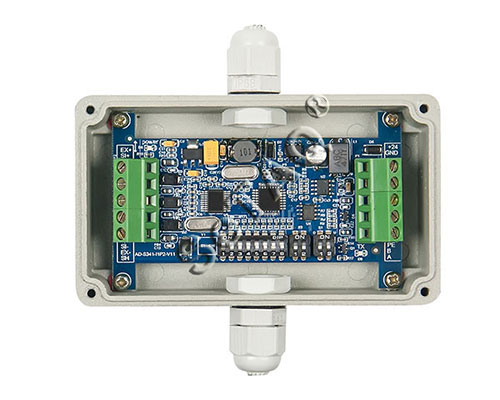

AD-S341-I1P2 high-speed weighing AD module
? ? As an update production of general weighing AD module, AD-S341-I1P2 has not only the basic function, such as AD conversion, digital calibration, tare, zero, zero tracking, COM communication, but also enhanced dynamic digital filtering. So the AD module is now more reliable and perfect. And it is suitable for industrial dynamic weighing situations.
Main Specifications:
l? A 8-bit DIP switch for setting the address of AD module
l? AD Resolution：24bit
l? AD output rate: 400 Samples/second
l? Output weight data rate: 6.25, 12.5, 25, 50, 100, 200 samples/second (opt.)
l? Default baud rate 19200bps, even parity, 8 data bits, 1 stop bit
l? Parameters of digital filters can be set
l? Calibration, tare, zero and auto zero tracking, etc.
l? Communication interface: RS-232, RS-485 and CAN (customized by users) are available at the same time
l? Operating voltage：24VDC;
l? Dimension (PCB only): 88*55*21(mm)
l? Aluminum enclosure: 109*108*40(mm)
l? Operating environment：-20℃～60℃,relative humidity 10%～85% no condensing
Features:
l? Several dynamic digital filters originally developed by SeTAQ can quickly eliminate various EMI and interference of mechanical vibration.
l? RS-485 half duplex.
l? Parameters of digital filters can be set
l? Stable performance, strong anti-interference, low power consumption, high reliability
l? Non-volatile memories for most parameters.
