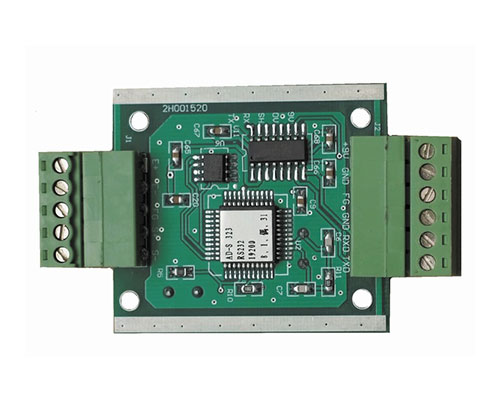

AD-S323 Modules (Discontinued)

Features and Specifications：

?★? Measuring range: ±15mV

?★? HardwareInterface: RS-232interface

?★? Software Protocol:? Freeport protocol

?★? A/D Resolution:1000000

?★? Temperature coefficient：≤5ppm／℃（typical）

?★? Dimensions（mm）：Rectangle：71×42×13

?★? A/D conversion,digital calibration, tare, zero setting/tracking, switch-on zero setting,anti-dithering;

?★? All the parameters can be set through serialinterface;

?★? Module addresses are availablefrom 0 to 31. Modules can work through bus communication;

?★? Baud rate,parity bit and data output format can be set. 1200～38400bps;

?★? Digital filtering: standard filtering or LPF;

?★? Samplingspeed: 3.125～400Hz;

?★? Storage ofthe parameters with protection against power failure;

?★? OperatingVoltage: 9V DC(6.5V～12V); Operating Current:≤40mA;

?★? Complete protection: wrong wiring protection, overvoltage protection, transient voltage suppression;

?★? Operating temperature range: -40℃～+70℃; Storage temperature range: -60℃～+90℃
